?性能特點
? Performance Characteristics

????該卷繞機用于電容套管芯子條式卷繞生產工藝，同時適用于條形平板電纜紙和皺紋電纜紙電容式套管。

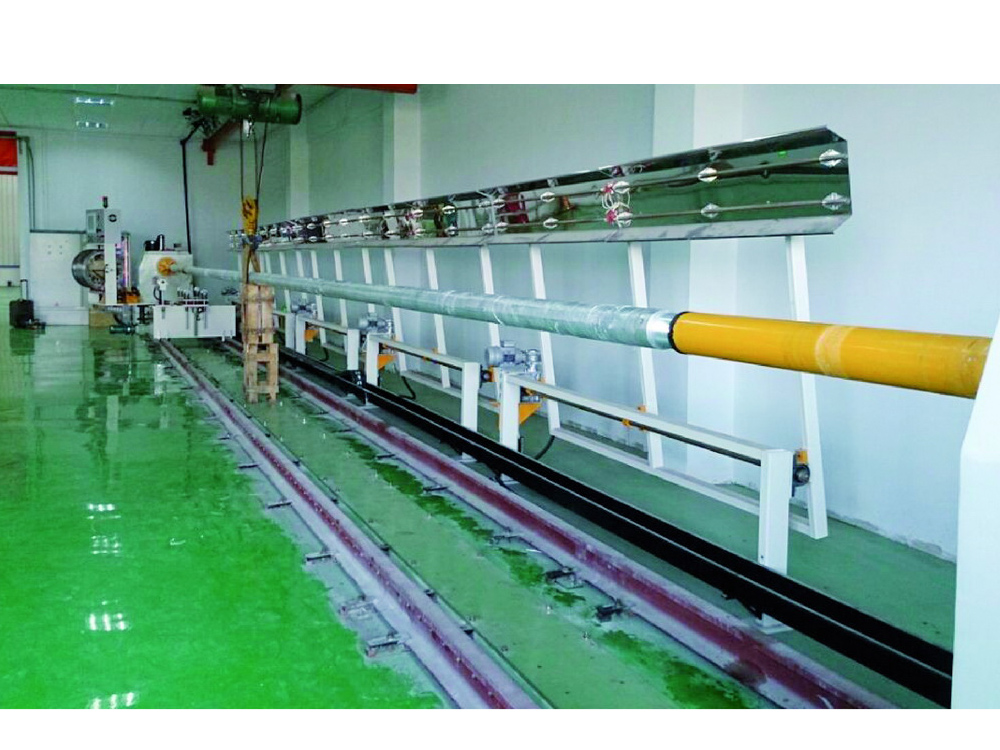

???? This machine is suitable for capacitance bushing core wrapping by strip. And also can produce capacitance bushing by resin impregnated paper or oil impregnated paper.

?技術參數
? Technical parameters

?
?

?
?

?環境溫度
? Temperature of nature

?15℃～40℃
?

?相對濕度
? Relative humidity

?≤40％
?

?電源電壓
? Voltage

?AC380V±10%，50HZ
?

?卷繞長度
? Length of bushing:

?≦13M
?

?卷繞成品直徑
? Max diameter of the product

?最大Ф700mm
?

?芯管外徑范圍
? Range of external diameter

?Ф45～Ф85mm
?

?芯管內徑范圍
? Range of inner diameter

?Ф35～Ф70mm
?

?芯管最大長度
? Max length of the product

?16M
?

?卷繞芯子（工件）最大重量
? Max weight of the product

?4噸
?

?電纜紙寬度
? Width of raw paper

?60～200mm可調

?紙卷最大外徑
? Diameter of the paper

?Ф480mm
?

?紙卷內徑
? Inner of the paper

?Ф71mm
?

?電纜紙帶厚度
? Thickness of resin impregnated paper

?0.13mm

?皺紋紙帶厚度
? Thickness of oil impregnated paper

?0.35mm；延伸率55%
?
